Ref. HE-D115

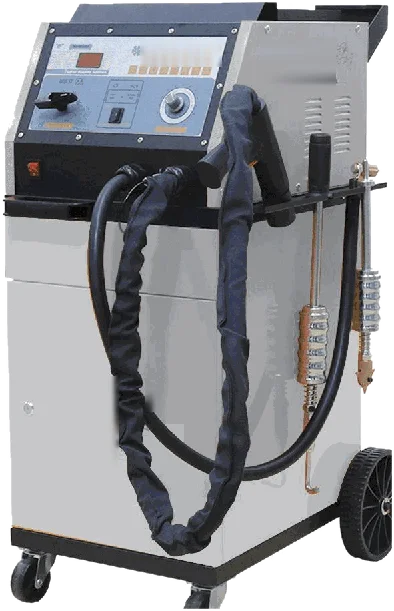

Trolley-mounted 7,500 A transformer steel spotter
7,500 A transformer steel spotter, three power ranges or stepless adjustment, trolley-mounted.
- 7,500 A
- Maximum current
- 5 kW
- Power
- 220 / 380 V
- Power supply
- Steel
- Materials
Choose the version
- Reference
- HE-D115-A
- Version
- Package 59 × 41 × 87 cm, 51 kg
Prices and stock for distributors only
Distributor areaLog in to see your net prices, your discount and availability.
Bodyshop or private customer?
Find a distributorThis product is available from Humming distributors. Find the one nearest to you.
Overview
Transformer steel spotter for straightening and pulling work that calls for power. Depending on the control fitted, it offers three power ranges (high, medium, low) with time adjustment, or stepless adjustment for finer repairs. Microprocessor control, an improved transformer and precise weld time regulation give consistent, energy-efficient work. Mounted on a trolley, it covers every welding function used in dent repair.
Key features
- Max. welding current 7,500 A
- Improved high-power transformer
- Three power ranges with time adjustment, or stepless adjustment
- Precise weld time regulation
- Oxygen-free pure copper cables
- Trolley-mounted, version with hammer holders available
How to use
- Pulling with stars, washers and OT rings
- Stud and wiggle wire welding
- Single-sided spot welding
- Heat shrinking
- Carbon electrode heating
Technical specifications
| Supply voltage | 220 V or 380 V – 50/60 Hz |
|---|---|
| Firing mode | Manual / automatic |
| Continuous power | 5 kW |
| Max. welding current | 7,500 A |
| Panel thickness | 0.4 to 1.2 mm |
| Power ranges | 3 (low / medium / high) on the stepped control; stepless adjustment on the other control |
| Open-circuit voltage | 10 V |
| Panels worked | Steel |
| Format | On trolley |
| Time adjustment (stepped control) | Dial graduated from 0 to 10 |
| Programmes | Star, washer, OT ring, carbon heating, wiggle wire, stud, heat shrinking, single-sided spot welding |
| Recommended settings (stepless control) | Star: time 0.1–0.2, power 90–99; washer and OT ring: time 0.1–0.2, power 80–99; wiggle wire: time 0.1–0.2, power 85–99; shrinking: time 0.1–0.3, power 50–80; single-sided spot welding: time 0.2–0.5, power 99 |
Packaging and delivery
What's in the box
- Copper-plated pulling stars ×10
- Pulling washers ×20
- OT pulling rings ×10
- Carbon electrode holder ×1
- Spanner ×1
- Suction cup ×1
- Wiggle wires ×10
- Washer / OT ring tip ×1
- Dual-purpose spot welding tip ×1
- 6-hook pulling claw ×1
- Carbon electrodes ×2
- Accessory case ×1
- Slide hammer for gun ×1
- Hook slide hammer ×1
Options
- Continuous-feed washer gun
- Additional tips and quick connectors, to be specified when ordering
Package dimensions59 × 41 × 87 cm (standard trolley) / 59 × 41 × 92 cm (trolley with hammer holders)
Package weight51 kg
Shipped from our stock in France. Lead time is confirmed when you order.
Documents
Product sheet (PDF)
User manualOn request
Humming warranty
Machine under warranty. Terms and duration are stated on your distributor's quote.
